CXT-DM

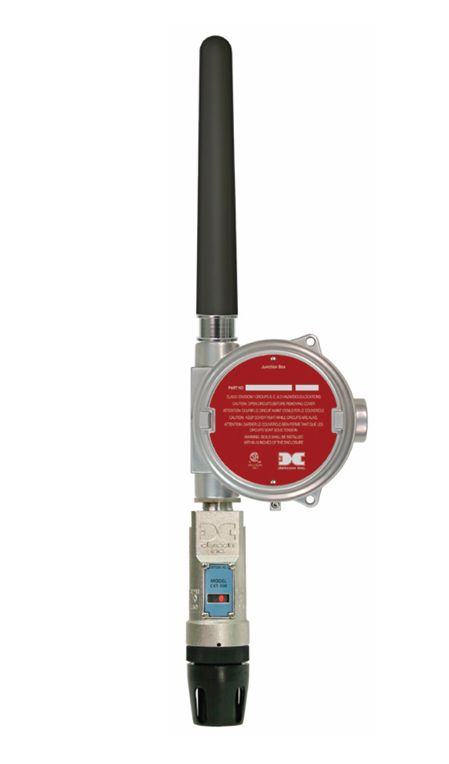

Teledyne Detcon CXT-DM Smart Wireless Gas Detector

Code: 96C-24020D-100
  • Universally accepted 2.4 GHz non-licensed frequency
  • Built-in display for gas-sensor/field-device HMI.
  • Disposable battery packs

In StockMake An Enquiry
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

The Detcon Model CXT-DM SmartWireless gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low-power sensor assemblies utilise electrochemical technology to detect a wide range of toxic gases. All component parts are rated for Class I, Division 1, Groups C and D hazardous areas.

These advanced field devices consist of a Detcon Model Series CXT low-power gas-detection sensor and a wireless transceiver, packaged in a single enclosure. Internal battery pack options provide power:

Disposable “D” cell (3.6V) batteries capable of continuous operation for up to 6 months. Lithium-ion rechargeable battery pack allows for 4 months of operation (not available with ATEX or IECEx approvals).

Detcon’s proprietary “Self Healing Mesh” technology operates at 2.4 GHz and complies with worldwide non-licensed use for radio-frequency appliances. Wireless network integrity and security are accomplished using direct sequence spread spectrum DSSS programming topology. Wireless applications can be as simple as a single field device communicating with a host display, or as complex as any number of field devices forming a network of subscribers.

Each device in the network is assigned a unique device identifier, or UID. Every device in the network can act as a router and repeater for all other devices in the network. This means that subscribers can “hop” through neighbouring devices to communicate with each other, thereby widening network access points.

This technology creates a robust network that automatically routes around congestion and line-of-sight obstacles, improving throughput as subscriber device density increases.

Features

  • Low-power gas detection sensors with built-in transceivers.

Applications

  • Oil and Gas Drilling Rigs.
  • Work-over and pulling units.
  • Oil and Gas Production.
  • Turnarounds in Refining and Petrochemical Plants.

    Enquire About This Product


    Title Size
    CXT-DM Datasheet 231 KB
    CXT-DM Manual 3 MB

    Additional information

    Weight 0.09 kg

    Ordering Information

    Aluminum enclosure – Disposable “D” Battery Pack, 5ea per sensor P/N: 360-TL5930-000
    96C-44020D-100 Model CXT-DM-CO, 0-100 ppm Carbon Monoxide Sensor Assembly
    96C-24020D-100 Model CXT-DM-H2S, 0-100 ppm Hydrogen Sulfide Sensor
    96C-34020D-025 Model CXT-DM-O2, 0-25 % Vol. Oxygen Deficiency Sensor Assembly
    96C-55020D-020 Model CXT-DM-SO2, 0-20 ppm Sulfur Dioxide Sensor Assembly
    96C-EA020D-100 Model CXT-DM-C2H30, 0-100 ppm Acetaldehyde Sensor Assembly
    96C-50020D-100 Model CXT-DM-NH3, 0-100 ppm Ammonia Sensor Assembly
    96C-19020D-001 Model CXT-DM-AsH3, 0-1 ppm Arsine Sensor Assembly
    96C-75020D-005 Model CXT-DM-Br2, 0-5 ppm Bromine Sensor Assembly
    96C-EB020D-100 Model CXT-DM-C4H6, 0-100 ppm Butadiene Sensor Assembly
    96C-74020D-010 Model CXT-DM-CL2, 0-10 ppm Chlorine Sensor Assembly
    96C-77020D-001 Model CXT-DM-CLO2, 0-1 ppm Chlorine Dioxide Sensor Assembly
    96C-76020D-050 Model CXT-DM-CLO2, 0-50 ppm Chlorine Dioxide Sensor Assembly
    96C-21020D-005 Model CXT-DM-B2H6, 0-5 ppm Diborane Sensor Assembly
    96C-EO020D-100 Model CXT-DM-C2H5OH, 0-100 ppm Ethanol Sensor Assembly
    96C-EZ020D-100 Model CXT-DM-C2H5SH, 0-100 ppm Ethyl Mercaptans Sensor
    96C-ED020D-100 Model CXT-DM-C2H4, 0-100 ppm Ethylene Sensor Assembly
    96C-27020D-001 Model CXT-DM-F2, 0-1 ppm Fluorine Sensor Assembly
    96C-08020D-030 Model CXT-DM-Hbr, 0-30 ppm Hydrogen Bromide Sensor
    96C-09020D-030 Model CXT-DM-HCL, 0-30 ppm Hydrogen Chloride Sensor
    96C-13020D-030 Model CXT-DM-HCN, 0-30 ppm Hydrogen Cyanide Sensor
    96C-33020D-010 Model CXT-DM-HF, 0-10 ppm Hydrogen Fluoride Sensor Assembly
    96C-EE020D-100 Model CXT-DM-CH30H, 0-100 ppm Methanol Sensor Assembly
    96C-EK020D-100 Model CXT-DM-CH3SH, 0-100 ppm Methyl Mercaptan Sensor Assy
    96C-94020D-100 Model CXT-DM-NO, 0-100 ppm Nitric Oxide Sensor Assembly
    96C-64020D-010 Model CXT-DM-NO2, 0-10 ppm Nitrogen Dioxide Sensor Assembly
    96C-39020D-001 Model CXT-DM-O3, 0-1 ppm Ozone Sensor Assembly
    96C-20020D-005 Model CXT-DM-PH3, 0-5 ppm Phosphine Sensor Assembly
    Aluminum enclosure – 1ea Rechargeable Battery Pack per sensor P/N: 976-0BP303-290
    96C-440207 Model CXT-DM-CO, 0-100 ppm Carbon Monoxide Sensor Assembly
    96C-240207 Model CXT-DM-H2S, 0-100 ppm Hydrogen Sulfide Sensor
    96C-340207 Model CXT-DM-O2, 0-25 % Vol. Oxygen Deficiency Sensor Assembly
    96C-550207 Model CXT-DM-SO2, 0-20 ppm Sulfur Dioxide Sensor Assembly
    96C-EA0207 Model CXT-DM-C2H30, 0-100 ppm Acetaldehyde Sensor Assembly
    96C-500207 Model CXT-DM-NH3, 0-100 ppm Ammonia Sensor Assembly
    96C-190207 Model CXT-DM-AsH3, 0-1 ppm Arsine Sensor Assembly
    96C-750207 Model CXT-DM-Br2, 0-5 ppm Bromine Sensor Assembly
    96C-EB0207 Model CXT-DM-C4H6, 0-100 ppm Butadiene Sensor Assembly
    96C-740207 Model CXT-DM-CL2, 0-10 ppm Chlorine Sensor Assembly
    96C-770207 Model CXT-DM-CLO2, 0-1 ppm Chlorine Dioxide Sensor Assembly
    96C-760207 Model CXT-DM-CLO2, 0-50 ppm Chlorine Dioxide Sensor Assembly
    96C-210207 Model CXT-DM-B2H6, 0-5 ppm Diborane Sensor Assembly
    96C-EO0207 Model CXT-DM-C2H5OH, 0-100 ppm Ethanol Sensor Assembly
    96C-EZ0207 Model CXT-DM-C2H5SH, 0-100 ppm Ethyl Mercaptans Sensor
    96C-ED0207 Model CXT-DM-C2H4, 0-100 ppm Ethylene Sensor Assembly
    96C-270207 Model CXT-DM-F2, 0-1 ppm Fluorine Sensor Assembly
    96C-080207 Model CXT-DM-Hbr, 0-30 ppm Hydrogen Bromide Sensor
    96C-090207 Model CXT-DM-HCL, 0-30 ppm Hydrogen Chloride Sensor
    96C-130207 Model CXT-DM-HCN, 0-30 ppm Hydrogen Cyanide Sensor
    96C-330207 Model CXT-DM-HF, 0-10 ppm Hydrogen Fluoride Sensor Assembly
    96C-EE0207 Model CXT-DM-CH30H, 0-100 ppm Methanol Sensor Assembly
    96C-EK0207 Model CXT-DM-CH3SH, 0-100 ppm Methyl Mercaptan Sensor Assy
    96C-940207 Model CXT-DM-NO, 0-100 ppm Nitric Oxide Sensor Assembly
    96C-640207 Model CXT-DM-NO2, 0-10 ppm Nitrogen Dioxide Sensor Assembly
    96C-390207 Model CXT-DM-O3, 0-1 ppm Ozone Sensor Assembly
    96C-200207 Model CXT-DM-PH3, 0-5 ppm Phosphine Sensor Assembly
    Batteries
    360-TL5930-000 Battery, Lithium 3.6V ‘D’-size (Not rechargeable)
    976-0BP303-290 Plug-In Battery Pack 12V 2900mAh (Rechargeable)
    Additional Plug In Electrochemical Toxic Gas Sensor Cells
    S92C-240204-100C CXT-H2S 320 0-100ppm Intelligent Transmitter Module (ITM) Does not include sensor cell, to be used for the Aluminum J-Box version with Rechargeable Battery (Not Included), – CSA Certification Label
    S96C-240204-100C CXT-H2S 320 0-100ppm Intelligent Transmitter Module (ITM) Includes sensor cell, to be used as a replacement for the rechargeable battery version – CSA Certification Label
    S92C-550204-020C CXT-SO2 320 0-20ppm Intelligent Transmitter Module (ITM) Does not include sensor cell, to be used as a replacement for the rechargeable battery version – CSA Certification Label
    S96C-550204-020C CXT-SO2 320 0-20ppm Intelligent Transmitter Module (ITM) Includes sensor cell, to be used as a replacement for the rechargeable battery version – CSA Certification Label
    S92C-WW020X-YYYZ CXT-Toxic-320 Intelligent Transmitter Module for Toxic Gas Sensors – does not include sensor cell. (where WW=Gas Code, X=J-Box and Battery Version, YYY=Range and Z=Certification)
    S92C-IR0204-100C CXT-IR 320 0-100% LEL Intelligent Transmitter Module(ITM) Does not include sensor cell, to be used as a replacement for the rechargeable battery version – CSA Certification Label
    S96C-IR0204-100C CXT-IR 320 0-100% LEL Intelligent Transmitter Module(ITM) Includes sensor cell, to be used as a replacement for the rechargeable battery version – CSA Certification Label
    943-004389-100 CXT Smart Battery 2-3 inch pipe mount bracket with Sunshade
    500-005180-100 CXT Smart Battery Terminal Board
    976-042405-000 5 Db Rubber Antenna
    600-003846-000 Antenna dust cover for whip antenna
    980-SPXSJX-006 2 meter whip antenna extension
    960-202200-000 Condensation prevention packet (For condulet, replace annually
    602-004402-000 D-Sized Battery Pack Assembly ( for 5 cell, replaceable, non-rechargeable) Does not
    976-0BP303-290 Plug-In Battery Pack 12V 2900mAh (Rechargeable)
    360-TL5930-000 Battery, Lithium 3.6V ‘D’-size (Not rechargeable)
    613-120000-700 Sensor Splash Guard with integral Cal Port
    943-002273-000 Harsh Environment Sensor Guard
    327-000000-000 Magnetic programming tool
    943-000000-000 Calibration Sleeve/Wind Guard for use with splash guard
    943-004389-100 2″ Pipe mount w/Sunshade for CXT sensor Rechargeable/D Cell Battteries
    943-003832-000 Mini Condulet Pipe Mount Plate
    943-004413-000 Sensor mountbrackets for Large Tripod legs
    CX 4-20ma Low Power Toxic Gas Sensor Assemblies
    96C-440402-100 CO, Carbon Monoxide 0-100 PPM Sensor Assembly for Model CX-DM
    96C-240402-100 H2S, Hydrogen Sulfide 0-100 ppm Sensor Assembly for Model CX-DM
    96C-340402-025 O2, Oxygen Deficiency 0-25 % Vol. Sensor Assembly for Model CX-DM
    96C-550402-020 SO2, Sulfur Dioxide 0-20 ppm Sensor Assembly for Model CX-DM
    Addition Electrochem Toxic Gas Sensor Assemblies
    96C-190402-001 AsH3, 0-1 ppm Arsine Sensor Assembly for Model CX-DM
    96C-210402-005 B2H6, 0-5 ppm Diborane Sensor Assembly for Model CX-DM
    96C-750402-005 Br2, 0-5 ppm Bromine Sensor Assembly for Model CX-DM
    96C-ED0402-100 C2H4, 0-100 ppm Ethylene Sensor Assembly for Model CX-DM
    96C-EO0402-100 C2H5OH, 0-100 ppm Ethanol Sensor Assembly for Model CX-DM
    96C-EZ0402-100 C2H5SH, 0-100 ppm Ethyl Mercaptans Sensor Assembly for Model CX-DM
    96C-EB0402-100 C4H6, 0-100 ppm Butadiene Sensor Assembly for Model CX-DM
    96C-EE0402-100 CH3OH, 0-100 ppm Methanol Sensor Assembly for Model CX-DM
    96C-EK0402-100 CH3SH, 0-100 ppm Methyl Mercaptan Sensor Assembly for Model CX-DM
    96C-740402-010 CL2, 0-10 ppm Chlorine Sensor Assembly for Model CX-DM
    96C-770402-001 CLO2, 0-1 ppm Chlorine Dioxide Sensor Assembly for Model CX-DM
    96C-760402-050 CLO2, 0-50 ppm Chlorine Dioxide Sensor Assembly for Model CX-DM
    96C-270402-001 F2, 0-1 ppm Fluorine Sensor Assembly for Model CX-DM
    96C-080402-030 Hbr, 0-30 ppm Hydrogen Bromide Sensor Assembly for Model CX-DM
    96C-090402-030 HCL, 0-30 ppm Hydrogen Chloride Sensor Assembly for Model CX-DM
    96C-130402-030 HCN, 0-30 ppm Hydrogen Cyanide Sensor Assembly for Model CX-DM
    96C-330402-010 HF, 0-10 ppm Hydrogen Fluoride Sensor Assembly for Model CX-DM
    96C-500402-100 NH3, 0-100 ppm Ammonia Sensor Assembly for Model CX-DM
    96C-940402-100 NO, 0-100 ppm Nitric Oxide Sensor Assembly for Model CX-DM
    96C-640402-010 NO2, 0-10 ppm Nitrogen Dioxide Sensor Assembly for Model CX-DM
    96C-390402-001 O3, 0-1 ppm Ozone Sensor Assembly for Model CX-DM
    96C-200402-005 PH3, 0-5 ppm Phosphine Sensor Assembly for Model CX-DM
    SW RXT-320 Wireless Transceivers/Repeaters
    976-000320-00E Model RXT-320 Wireless Transceiver
    976-000321-000 Model RXT-320 w/Aluminum J-Box & Terminal Board
    976-000322-000 Model RXT-320 w/Stainless Steel J-Box & Terminal Board
    976-000327-100 Model RXT-320 w/Ext. lid aluminum junction box and Hi output smart battery pack (Battery part # 976-0BP303-290 not included)
    976-0BP303-290 Plug-In Battery Pack 12V 2900mAh (Rechargeable)
    360-TL5930-000 D Cell Lithium Ion disposable battery replacement
    976-0BP303-290 Plug-in Smart Rechargeable Hi output (2900maH) Battery Pack (for use with 12 and
    976-000304-004 Four Gang Battery Charger for Smart Rechargeable battery
