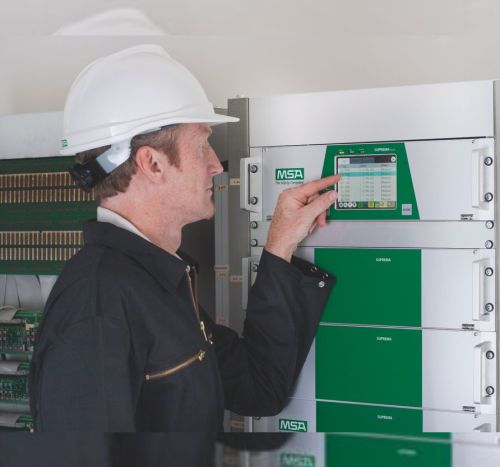

The SUPREMATouch features a large colour touchscreen display with a title-based menu structure to optimise intuitive operation. It can be used with a wide range of detectors for combustible gas, toxic gas and oxygen deficiency. Output options include relays and 4-20 mA outputs.
Remote racks can be connected (satellite structure), which expands control systems and reduces cabling costs. Interfacing with external systems is provided through the use of Modbus or Profibus. The SUPREMATouch has been certified according to ATEX and is suitable for virtually any safety-related application, including redundant systems with up to a Safety Integrity Level (SIL) 3 rating (EN 61508).
The intuitive SUPREMA Manager Software is designed for configuring, parameterising, and calibrating the SUPREMATouch Fire and Gas Controller. It offers the option to create detailed and laid out reports to support documentation and supports all the features of the SUPREMATouch.
Highlights:
- Compact, modular design requires less space in cabinets
- Digital CAN-bus technology provides reliable internal communication
- Intuitive system configuration directly on the local language touchscreen with no programming skills required
- Continuous expandability lets the system grow as needed, thus ensuring protection of investment
Enhanced features:
- One analogue input module, MAI30, for all connectable detector types
- Extension of switching logic
- New hardware
- Remote calibration with HART option (no additional tools necessary)
- One user calibration (gas values are transferred automatically)
- Group calibration (an optional number of measuring points per group can be calibrated in parallel)
- Micro SD card support
- Time synchronisation via Ethernet
Order Information:
Pre-Configured Kits:
10188272 SUPREMA System 8/24 non-redundant (8 measuring points, 24 relays 5A, non-redundant, unshielded cable). Contains: SUPREMA Touch Base Kit (m. NT 250W) Qty 1, SUPREMA MAI 30 Qty 1, SUPREMA MHS30 Qty 1, SUPREMA MGO20 GENERAL OUTPUT Qty 1, SUPREMA MUT Universal Terminal Qty 2, SUPREMA FRC-40 Flat Ribbon Cable Qty 2, SUPREMA MAT-TS Analog Terminals (rail) Qty 1, SUPREMA MRC-TS Relay Connection Qty 1, Suprema Relais Output Unit MRO20-8-TS Qty 3, SUPREMA MRD 10, Relais Dummy Qty 2, SUPREMA Touch, microSD card, 32GB Qty 1, SUPREMA Touch CD-ROM – Manuals Qty 1 and SUPREMA Touch CD ROM – SUPREMA Manager Qty 1
10188274 SUPREMA System 16/32 non-redundant (16 measuring points, 32 relays 5A, non-redundant, unshielded cable). Contains: SUPREMA Touch Base Kit (m. NT 250W) Qty 1, SUPREMA MAI 30 Qty 2, SUPREMA MHS30 Qty 2, SUPREMA MGO20 GENERAL OUTPUT Qty 1, SUPREMA MUT Universal Terminal Qty 3, SUPREMA FRC-40 Flat Ribbon Cable Qty 3, SUPREMA MAT-TS Analog Terminals (rail) Qty 2, SUPREMA MRC-TS Relay Connection Qty 1, Suprema Relais Output Unit MRO20-8-TS Qty 4, SUPREMA MRD 10, Relais Dummy Qty 1, SUPREMA Touch, microSD card, 32GB Qty 1, SUPREMA Touch CD-ROM – Manuals Qty 1 and SUPREMA Touch CD ROM – SUPREMA Manager Qty 1
10188275 SUPREMA System 24/40 non-red, Modbus (24 measuring points, 40 relays 5A, non-redundant, unshielded cable). Contains: SUPREMA Touch Base Kit (m. NT 250W) Qty 1, SUPREMA MAI 30 Qty 3, SUPREMA MHS30 Qty 3, SUPREMA MGO20 GENERAL OUTPUT Qty 1, SUPREMA MUT Universal Terminal Qty 4, SUPREMA FRC-40 Flat Ribbon Cable Qty 4, SUPREMA MAT-TS Analog Terminals (rail) Qty 3, SUPREMA MRC-TS Relay Connection Qty 1, Suprema Relais Output Unit MRO20-8-TS Qty 5, SUPREMA MBC20-Modbus Qty 1, SUPREMA MBT20 Qty 1, SUPREMA Touch, microSD card, 32GB Qty 1, SUPREMA Touch CD-ROM – Manuals Qty 1 and SUPREMA Touch CD ROM – SUPREMA Manager Qty 1
10188276 SUPREMA System 8/24 non-redundant (8 measuring points, 24 relays 5A, non-redundant, unshielded cable). Contains: SUPREMA Touch Base Kit (m. NT 250W,redu) Qty 1, SUPREMA MAI 30 Qty 3, SUPREMA MHS30 Qty 3, SUPREMA MAR 30 Qty 3, SUPREMA MGO20 GENERAL OUTPUT Qty 2, SUPREMA MUT Universal Terminal Qty 5, SUPREMA FRC-40 Flat Ribbon Cable Qty 5, SUPREMA MAT-TS Analog Terminals (rail) Qty 3, SUPREMA MRC-TS Relay Connection Qty 1, Suprema Relais Output Unit MRO20-16-TS Qty 5, SUPREMA MBC20-Modbus Qty 2, SUPREMA Touch, microSD card, 32GB Qty 1, SUPREMA MBT20 Qty 2, SUPREMA Touch CD-ROM – Manuals Qty 1 and SUPREMA Touch CD ROM – SUPREMA Manager Qty 1
Base Kits:
10177836 SUPREMA Touch Base Kit (w/o PS)
10177835 SUPREMA Touch Base Kit (w/ PS 250)
10177815 SUPREMA Touch Base Kit Red (w/o PS, redu.)
10177837 SUPREMA Touch Base Kit (w/ PS 250W, redu.)
10123101 Upgrade kit (MCP20+MDC20+MDO20 Front panel)
10123102 Upgrade kit Red (2xMCP20+MDC20+ MDO20 Front panel)
19 Racks:
10166236 SUPREMA Touch Rack (w/o.PS 250W, w. MDO)
10166234 SUPREMA Touch Rack (w PS 250W,w. MDO)
10166233 SUPREMA Touch Rack (w.PS 250W,w/o. MDO)
10166235 SUPREMA Touch Rack (w/o.PS 250W, w/o. MDO)
10215766 SUPREMA Touch Rack RU (w/o.PS 250W, w. MDO)
10215767 SUPREMA Touch Rack RU (w PS 250W,w. MDO)
10215768 SUPREMA Touch Rack RU (w.PS 250W,w/o. MDO)
10215769 SUPREMA Touch Rack RU (w/o.PS 250W, w/o. MDO)
Base Parts Spares:
10101581-SP = SUPREMA MCP20, spare
10109638-SP = SUPREMA MDO20, spare
10120689-SP = SUPREMA Touch Front Panel complete. Engl.
10119427-SP = SUPREMA Front panel satellite, spare
10110482-SP = SUPREMA MDC20, spare
Input Kits with 1xMAI30 included:
10170219 SUPREMA Input Kit TS
10170220 SUPREMA Input Kit TS Type S
10170251 SUPREMA Input Kit, Backplane
10170252 SUPREMA Input Kit Redundant TS
10170253 SUPREMA Input Kit Redundant, TS Type S
10176423 SUPREMA Input Kit Redundant BP
Input Kits with 1xMGI30 included:
10170255 Switch Input Kit TS, SUPREMA Touch
10170256 Switch Inp-Kit TS Typ S, SUPREMA Touch
10170257 Switch Input Kit Rückw.,SUPREMA Touch
10181302 Switch Inp. Kit TS Typ S, SupremaT. Red.
Input Spares:
10151719-SP = SUPREMA Touch MAI 30, spare part
10151720-SP = SUPREMA Touch MAR 30, spare part
10104584-SP = SUPREMA MST 20, spare part
10151731-SP = SUPREMA MHS30, spare part
10170299-SP = SUPREMA MGI30, spare part
10170300-SP = SUPREMA MGR30, spare part
10015759 = SUPREMA MAT Analogue Terminals
10080011-SP = SUPREMA MDA20 DATA ACQUISITION, spare
10019468 = SUPREMA MUT Universal Terminal
Output Kits with MAO20 included:
10153794 SUPREMA Touch analogue output kit
10153795 SUPREMA Touch analogue Opt. Kit TS, Type S
Output Kits with 1xMGO20 included:
10088413 SUPREMA Driver Kit, Rail (MGO20)
10088414 SUPREMA Driver Kit, Rail Type S (MGO20)
10088415 SUPREMA Base Relay Kit, Rail (MGO 20)
10088416 SUPREMA Relay Kit, Backplane (MGO20)
10088417 SUPREMA Base Relay Kit, Rail Type S (MGO20)
Output Kits with 2xMGO20 included:
10088418 SUPREMA Base Relay Kit, Red Rail (MGO20)
10088419 SUPREMA Base Rel. Kit, Red Rail Type S (MGO20)
Output Kits:
10153794 = SUPREMA Touch analogue output kit (repl. f. 10029186)
10153795 = SUPREMA Touch analogue Opt. Kit TS, Type S (repl. f. 10029187)
10088413 = SUPREMA Driver Kit, Rail (MGO 20)
10088414 = SUPREMA Driver Kit, Rail Type S (MGO 20)
10088415 = SUPREMA Base Relay Kit, Rail (MGO 20)
10088416 = SUPREMA Relay Kit, Backplane (MGO 20)
10088417 = SUPREMA Base Relay Kit, Rail Type S(MGO2)
10088418 = SUPREMA Base Relay Kit, Red Rail (MGO20)
10088419 = SUPREMA Base Rel. Kit, Red Rail Type S
10206428 = Base Relay Kit MRO20, SUPREMAT
10206429 = Base Relay Kit MRO20, SUPREMAT, shielded
10206430 = Base Relay Kit MRO20, SUPREMAT, redund
10206431 = Base Relay Kit MRO20, SUPREMAT, red, sh
Output Boards:
10102071 = SUPREMA MAO 20
10069677 = SUPREMA MSO Status Output, PCBA
10021430 = SUPREMA MRO-16-TS Relay Output (rail)
10021676-SP = SUPREMA MRC-TS Relay Connection, spare
10022311 = SUPREMA MAT-TS Analogue Terminals (rail)
10026772 = SUPREMA MGT-40-TS Terminals (rail)
10052880 = SUPREMA MRD 10, Relay Dummy
10038420 = SUPREMA MHD TS, High Driver
10083804-SP = SUPREMA MGO20 GENERAL OUTPUT, spare
10115115 = SUPREMA MRO20-8-TS SSR Relay (rail)
10105281 = SUPREMA MRO10-16-TS SSR Relay (rail)
10021674-SP = SUPREMA MRO-8-TS Relay Output (rail)
10112807-SP = SUPREMA MRO20-8-TS Relay Output (rail)
10112805-SP = Suprema Relay Output MRO20-16-TS, Spare
Infrastructure(Gateway, bridges etc):
10121146 = SUPREMA Gateway CAN/PROFIBUS DP II
10126387 = SUPREMA MODBUS GATEWAY KIT
10122578 = SUPREMA MBC20-Modbus spare
10213559 = Profinet Gateway Suprema Touch, kit
10213560 = Profinet Gateway Suprema Touch, spare
10034641 = SUPREMA CAN Bridge CBM (29 Identifier)
10050969 = Suprema Kit CAN Bridge CBM
10052948 = SUPREMA CAN Fibre Optic Converter
10191373 = SUPREMATouch CAN-FO Converter MM-ST
10105279 = MBT 20 Module
Cables:
10029124 = SUPREMA FRC-40 Flat Ribbon Cable Type S
10026178 = SUPREMA FRC-40 Flat Ribbon Cable
10030083 = SUPREMA CAN cable 5m D-SUB female/ male
10030084 = SUPREMA CAN cable 0,5m D-SUB female/ male
10050701 = SUPREMA CAN-CBM cable 5m D-SUB female
10055498 = MLE Flat ribbon cable, 40 Pins
Spares:
10152123-SP = Power supply Suprema 250W/24VDC, spare
10179005 = SUPREMA Touch, microSD card, 32GB
10030262 = SUPREMA Sensor-Simulation-Module 4-20mA
10030263 = SUPREMA Sensor-Simulation-Module WT
10090928 = SUPREMA Driver Kit MHD, Rail Type S (MG2)
10027372 = SUPREMA Set of screws 30xM3
10195887 = Dual Channel Adapter SUPREMA Touch
10050712 = SUPREMA Interconnection Board MIB
10191490 = Sensor-Simulation Switch SUPREMA
CD’s:
10121867 = SUPREMA Touch CD-ROM – Manuals
10121868 = SUPREMA Touch CD-ROM – SUPREMA Manager
10159747 = SUPREMA Touch CD-ROM – SUPREMA Calibration
