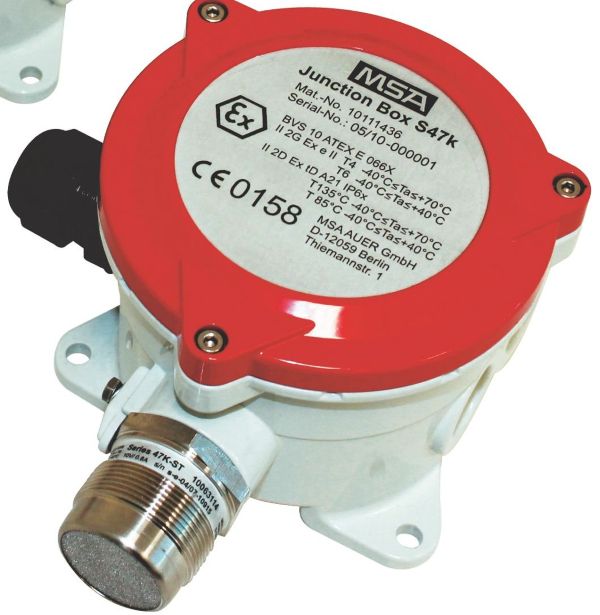

MSA remote sensors, Series 47K, are designed to detect potentially hazardous air concentrations of flammable gas and vapour.
A cost-effective range of sensors for detecting up to 100 % LEL, including Poison Resistant and High Temperature versions.
Series 47K sensors are available with either Ex d – 3/4″ NPT or Ex e–M25 junction boxes.
A complete range of accessories for calibration, environmental protection, sampling and duct mounting makes it suitable for virall combustible gas detection applicationseries 47K sensors used in combination with MSA Controllers fully meet the requirements of ATEX Directive 2014/34/EU, including performance, and being SIL 2 capable they can be used as part of a safety related system.
Features
- 0–100% LEL.
- Ex e junction box with M25 cable gland thread.
- Ex d junction box with 3/4″ NPT cable gland thread.
- Poison Resistant (PRP) and High Temperature (HT) versions.
- Suitable for safety-related systems (ATEX 2014/34/EU).
- 3 or 5 wire connection.
- Stainless steel body.
- Complete range of accessories.
- Fast response time.
- Excellent performance cost ratio.
- Safety Integrity Level – SIL 2.
Order Information
| M25 Gas Detector (Sensor & Junction Box; stainless steel 316) | |
| 10114106 | S47K-PRP, Det., M25, MSA hous., screw |
| 10114109 | S47K-PRP, Det., M25, MSA hous., spring |
| 10123076* | S47K-PRP, Detector, M25, screw, cal. |
| 10123095* | S47K-PRP, Detector, M25, spring, cal. |
| NPT Gas Detector (Sensor & Junction Box; stainless steel 316)3 | |
| 10114107 | S47K-PRP, Det.,3/4″NPT, MSA Hous., screw |
| 10114110 | S47K-PRP, Det.,3/4″NPT,MSA Hous., spring |
| 10178833* | Detector S47K-PRP, NPT, spring, cal. |
| 10178834* | Detector S47K-PRP, NPT, screw, cal. |
| Notes: | *To be ordered together with a customised controller |
| M25 Sensor | |
| 10048118 | S47K-PRP, Sensor, St.St.316, M25x1,5 |
| 10147537 | S47K-HT-PRP, Sensor, V4A, M25x1,5, 2m |
| 10185325 | Detector S47K-HT PRP, M25, 10m cable |
| 10147541* | S47K-HT-PRP, Sens, V4A, M25, 2m, kal. |
| 10185386* | Detector S47K-HT PRP, M25, 10m cab, cal |
| Notes: | *To be ordered together with a customised controller |
| NPT Sensor | |
| 10048272 | S47K-PRP, Sensor, St. St. 316, 3/4 “NPT |
| 10147542 | S47K-HT PRP, Sensor, V4A, 3/4″NPT, 2m |
| Junction Box & Wall Mount Bracket | |
| 10114111 | Series 47K MSA Housing EExe, screw |
| 10114112 | Series 47K MSA Housing, EExd, screws |
| 10114114 | Series 47K MSA Housing EExe, spring |
| 10114115 | Series 47K MSA Housing, EExd, spring |
| 10048829 | Wall mounted bracket, Sensor S47K HT |
| 10151980 | HT junction box 100 °C |
| Accessories | |
| 10112789 | Calibration cap |
| 10051623 | S47K WEATHER PROTECTION, HOSE,316 |
| 10051731 | S47K Weather p.cap NPT-Pipe connector 316 |
| 10113031 | Flow adapter PrimaX & S47K |
| 10105760 | S47K, adapter f. MSA enclosure |
| 10053551 | Mounting sheet e-junction.box 90×90 S47k |
| 10054042 | S47K Mounting S. E-junct.b.+accessories |
| 10150921 | PrimaX Remote calibration splash guard (CalGard) |
| 10045912 | S47K, Manual, CD |
| 10045913 | S47K, Instruction card |
| 10145118 | S47K, SPARES KIT F. WEATHER PROTECTION |
| 10204039 | Gasket set S47K |
