Multi-channel, wall-mounted economical controller for all of your gas monitoring needs

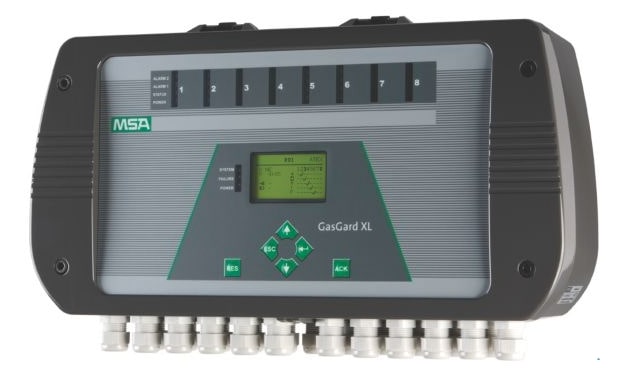

The GasGard XL Controller from MSA Safety is a versatile and user-friendly controller for monitoring toxic and combustible gases, as well as oxygen deficiency.
This controller offers protection against potentially hazardous conditions in various industrial, chemical, municipal, and wastewater applications.
The GasGard XL Controller offers reliability in a compact, durable, wall-mounted housing constructed of fire-retardant ABS plastic.
The large and clear multi-language LCD display provides real-time target gas readings and events, offers full system diagnosis, and is supported by individual LEDs per channel, with common relays, and an internal buzzer.
The GasGard XL Controller can be easily configured to accept up to eight remote gas sensors, depending on the number of individual plug-in input cards installed.
With two alarm levels per channel, the GasGard XL Controller operates in conjunction with MSA’s remote gas sensors, which detect combustible, toxic, or oxygen levels (4–20 mA).
Ideal for use with MSA’s gas and flame detectors, this controller’s ergonomic design allows for efficient wiring and installation.
Features
- Event log upload through isolated Ethernet RS-485 or USB.
- Expandable up to 8 independent channels using plug-in boards.
- Dedicated keys make all functions accessible from the front panel.
- Common relay board for Alarm Level 1 and 2, Horn 1 and 2, or Failure.
- Large graphic display with intuitive icons; all channels shown at a glance.
- Cloud-enabled remote monitoring and notifications are available using the FieldServer FGFD ProtoAir Gateway.
Order Information
Unconfigured Parts
10090372 GasGard XL (Designed for up to four channels)
10083905 GasGard XL (Designed for up to eight channels)
10094352 GasGard XL, four channel, without power supply
Spare Parts & Accessories
10081674 Gasgard XL, channel board 4-20mA
10081675 Gasgard XL, channel board mV
10081677 Gasgard XL, Channel relay board
10081676 Gasgard XL, Sensor Extension Board
10081679 Gasgard XL, display board
10085436 Gasgard XL, Main Board (Chan. 1-4)
10081772 Battery 2.2 Ah, GasGard XL, complete
10081678 Gasgard XL, power supply 100 W
10081771 Gasgard XL, power supply 75 W
10081773 Gasgard XL, housing bottom w. inserts
10081774 Gasgard XL, lid w. touch pad
10085393 Battery holder w. screws, Gasgard XL
10085394 Power supply holder, Gasgard XL
10085435 Gasgard XL, spare battery for. Mainboard
10089913 GasGard XL, Relay board spacers, 6 pcs.
10081775 Gasgard XL, flat cable, MB to DB
10081776 Gasgard XL, Back-up Battery Cable
10070331 USB A-B cable, 1,8 m
10090929 GasGard XL, Set of 12 cable glands
10081777 Gasgard XL, set of 4 mounts. screws
10081909 Gasgard XL, Lid fixing screws, 4 St.
10081908 GasGard XL Operating Manual on CD
MSA FieldServer Gateways
10225079 Includes NEMA Enclosure, 1 ProtoAir LTE Vodafone IoT Gateway with external LTE antenna, 1 Ethernet, 1 Wi-Fi, 1 RS-485/RS-232, 4 x 4-20mA
FPA-C43-2063 1 ProtoAir LTE Vodafone IoT Gateway with 1 RS485/232, 1 Ethernet, 1 Wi-Fi and 1 LTE interface (no power supply).
FPA-W44-1919 1 ProtoAir Wi-Fi with 2 RS-485, 1 Ethernet and 1 Wi-Fi interface (no power supply).
FPC-N54-2110 ProtoNode Gateway with 2 RS-485, 1 Ethernet and 1 Wi-Fi interface (no power supply)
FPC-N64-2111 ProtoNode Gateway with 2 RS-485, 2 Ethernet and 1 Wi-Fi interface (no power supply)
MSA Grid Annual Cloud Subscription Plans
FieldVEU Annual subscription for one FieldVEU dashboard
10222302 Per-gateway annual subscription (SMS & Email notifications and data logging)
10222303 Additional Gateway (2-5 units)
10222304 Additional Gateway (6+ units)
Custom Programming
FS-8790-33 Configuration Service to program a non-MSA device for remote monitoring or protocol translation (one-off programming)
