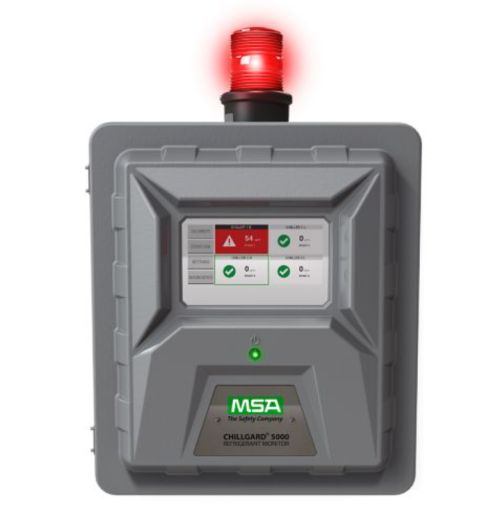

MSA Chillgard 5000 Refrigerant Monitor

Code: 10192643
  • Monitors up to 6 refrigerants, selectable from a refrigerant library
  • Sensitivity – earliest level of detection down to 1 ppm
  • One-touch calibration for ease of use & maintenance

In StockMake An Enquiry

The Compact Autonomous Gas Detection System

The Chillgard 5000 Refrigerant Leak Monitor provides the earliest level of detection of costly refrigerant gas leaks in mechanical equipment rooms.

The sampling system features patented photoacoustic infrared (PAIR) technology, which detects leaks as low as 1 part per million (ppm).

Intuitive, touchscreen user interface makes it easy to operate. Predictive maintenance and diagnostics keep you operational.

Meets ASHRAE 15 requirements to provide visual and audible alarms both inside and outside of mechanical equipment rooms and to activate mechanical ventilation.

  • Reliability – advanced sensor diagnostics and predictive maintenance.
  • Stability – minimal drift, not affected by temperature or humidity.

Intuitive, multi-lingual user interface provides valuable data at your fingertips

  • Real-time dashboard view
  • Event logs
  • Password protected

Digital communications

  • BACnet
  • Modbus

List of available refrigerants in the library

  • R11
  • R12
  • R123
  • R1233ZD
  • R1234YF
  • R1234ZE
  • R125
  • R134A
  • R143A
  • R152A
  • R21
  • R218
  • R22

Order Information

Chillgard 5000

10192643 = A-CG5000-0-4M-0-0-M
10193065 = A-CG5000-0-8M-0-0-M
10192815 = A-CG5000-0-16M-0-0-M
10193386 = A-CG5000-0-4M-1-0-M
10193367 = A-CG5000-0-8M-1-0-M
10193015 = A-CG5000-0-16M-1-0-M

Chillgard 5000 Ammonia

10217008 = A-CG5000-1-4M-0-0-M
10217009 = A-CG5000-1-8M-0-0-M
10217010 = A-CG5000-1-16M-0-0-M
10217041 = A-CG5000-1-4M-1-0-M
10217042 = A-CG5000-1-8M-1-0-M
10217043 = A-CG5000-1-16M-1-0-M

Remote Display

10204450 = Chillgard 5000 Remote Display

Replacement Parts

10186445 = Touchscreen Display Assembly
10186446 = Sample Valve Assembly
10215299 = Sample Valve Assembly NH3
10186447 = Sensor Module Assembly
10215298 = Sensor Module Assembly NH3
10186448 = Main Circuit Board Assembly
10190166 = Pump Assembly, Chillgard 5000
10215301 = Pump Assembly, Chillgard 5000 NH3
10204293 = Cal/ Eq, Valve Replacement Kit
10190167 = Bypass Manifold Kit, Chillgard 5000
10215302 = Bypass Manifold Kit, Chillgard 5000 NH3
10200925 = Cal Port, Replacement
711561 = End of Line Filter
711562 = End of Line Filter ammonia
655533 = Internal Inline Filter
10186428 = Replacement Fuse kit
10186424 = Phoenix Terminal Kit

Upgrade Kits Chillgard 5000

10186443 = Field Upgrade Kit, 4 to 8 pt
10215305 = Field Upgrade Kit, 4 to 8 pt NH3
10186444 = Field Upgrade Kit, 8 to 16 pt
10215306 = Field Upgrade Kit, 8 to 16 pt NH3
10190172 = Field Upgrade Kit, 4 to 8 pt metric
10215307 = Field Upgrade Kit, 4 to 8 pt NH3 metric
10190173 = Field Upgrade Kit, 8 to 16 pt metric
10215308 = Field Upgrade Kit, 8 to 16 pt NH3 metric

Accessories

10186426 = Pull Station
10186427 = Acknowledge Button
10186425 = Remote horn
10058753 = Strobe
10190345 = Maintenance Kit
10215309 = Maintenance Kit NH3
10186441 = SD card Chillgard 5000

Installation and Calibration

10189778 = Tubing, Polyurethane, Ether based, 1/4″OD
603876 = Tubing, FEP 1/8″ ID, 1/4″ OD (for NH3)
10190170 = Internal Filter Kit
10190169 = End of Line Filter Kit
10215303 = End of Line Filter Kit NH3
10190168 = Tubing Kit
10215304 = Tubing Kit NH3
458480 = Smoke tubes
803873 = Zero Gas Scrubber
803874 = Span Gas Scrubber
710269 = Calibration Gas Regulator
10035594 = Calibration Gas Regulator NH3
10182184 = Calibration Kit
10215297 = Calibration Kit NH3
10172368 = Power Supply Harness Assembly
10172369 = AC In Harness Harness Assembly
10178503 = LED Cable Assembly
10178884 = Internal Sounder
10178886 = Internal Sounder Harness Assembly
10174805 = Board Cover
10174835 = Swagelok Fitting
10177906 = 8″ Communication Cable
10058753 = Red Flashing Light Tower, 24V
10173035 = PLUG, VENT, LIQUID TIGHT,1/2″
10207966 = Strobe Kit
10216092 = Power Supply
10204443 = Main board remote display
10206661 = SD card Remote display
487809 = PUMP AND DRIVE ASSY
10011219 = Ribbon cable P/N 489345 (14 terminals)
10019422 = PTFE tubing 1/4″OD / 1/8″ID
10033479 = H, SST,3MMX5MM L
10033623 = O-RING: FKM,25.12X1.78MM
10035439 = KIT, VALVE, CHILLGARD, VITON
10084445 = KIT, CHILLGARD, VALVE, EQUALIZATION
D0745031 = End of line filter
D0745032 = CHILLGARD RT Filter, Inline
D0745038 = CHILLGARD RT Pump assembly
D0745039 = CHILLGARD RT Solenoid valve
D0745040 = Low flow switch
D0745044 = End of line filter (Ammonia)
D0745045 = Union, St.St. (1/4″tube)
D0745048 = CHILLGARD RT Front panel with Keypad

Enquire About This Product

Title Size
Chillgard 5000 Datasheet 403 KB

Additional information

Weight 0.190 kg

Specifications

USAGE Indoor use only
OVERVOLTAGE Category II
POLLUTION Degree 2
AC POWER 100–240 Vac, 50/60 Hz, 200VA
OPERATING TEMPERATURE 32° to 122° F (0° to 50° C)
OPERATING ALTITUDE LIMIT 9762 ft. (2975 m)
OPERATING HUMIDITY 0 to 95%, noncondensing
INGRESS PROTECTION IP54
SIZE 15.6 in. x 13.6 in. x 7.6 in. (39.6 cm x 34.5 cm x 19.3 cm) H x W x D
WEIGHT
4-POINT UNIT 14 lbs. (6.4 kg)
8-POINT UNIT 15 lbs. (6.8 kg)
16-POINT UNIT 17 lbs. (7.7 kg)
SENSOR TYPE Photoacoustic Infrared (PAIR)
SAMPLE LINE TUBING
POLYURETHANE TUBING 0.25” OD (0.635 cm) x 0.1875” (0.48 cm) or 0.125” ID (0.3175 cm)
METAL TUBING 0.25” OD (0.635)
SAMPLE LINE Up to 400 ft. (121 m) for optimum performance,
MONITORING DISTANCE Will support up to 1250 ft. (381 m)
MEASURING RANGE 0 – 1000 ppm
SENSITIVITY (MIN DETECTION) 1 ppm for all refrigerant gases
ACCURACY (LINEARITY) 0–50 ppm ±1 ppm, 51–1000 ppm ±10% of reading
SENSOR RESPONSE TIME 90% of gas reading <70 sec
RELAYS 5 Form C, 8A 250VAC/24VDC resistive SPDT for Fault, Caution Level, Warning Level, Alarm Level and External Horn
AUDIBLE ALARM 95 ±5 dB(A) at 24 in. (61 cm) maximum
COMMUNICATION OUTPUTS 4–20 mA sourcing, 250 Ohm load; 0 – 10 V , 2 K Ohm minimum load; RS485 Modbus RTU; RS-485 BACnet MS/TP
WARRANY 2 years
APPROVALS UL 61010-1 (3rd Edition)
CAN/CSA-C22 No. 61010-1-2012
IEC/EN 61010-1:2010 (3rd Edition)
EN 14624

Enquire About This Product
