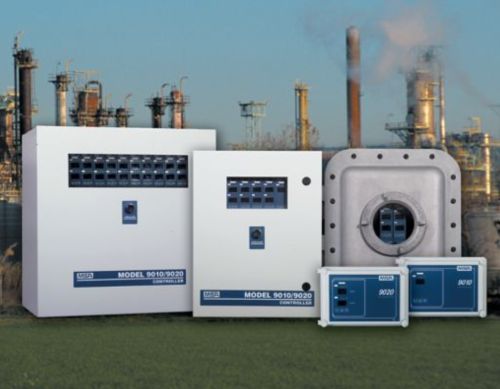

MSA 9010/9020 SIL Gas Control System

Code: 10162570
  • SIL 2 suitable
  • One hardware configuration for all detectors
  • Ethernet for Modbus TCP

In StockMake An Enquiry

The Compact Autonomous Gas Detection System

MSA’s gas detection systems are utilised worldwide to safeguard plants and personnel from hazardous gases across a diverse range of industries. When personnel monitoring is not available or suitable, permanently installed detection systems are used for continuous monitoring.

As a part of a gas warning system, our 9010/9020 SIL controller offers maximum flexibility in conjunction with a wide variety of detectors. It operates with either one (9010) or two (9020) independent channels per control module, making it logically independent, highly economical, and therefore best suited for smaller gas detection installations. The dual channel capability allows a high-density packaging of up to 20 points in a single 19″ rack.

Its new SIL-compliant design offers a higher safety function to increase the protection level for facilities and people.

A high level of reliability is ensured, as each control module is fitted with an independent AC/DC power supply unit and logic circuit, with software validated according to the ATEX Directive.

Features

  • Improved menu navigation (additional ESC key).
  • A software menu performs the reconfiguration of controllers.
  • Every module has its own power supply.
  • Universal power supply with improved power distribution to connected sensors.
  • Backwards compatibility (works together with the former 9010/9020 versions).
  • An independent LCD display is available for each channel.
  • RS-485 for Modbus RTU with improved documentation.
  • Diagnostic via the device’s own website.
  • 19″ rack and wall mount design.
  • Modular plug-in design with either one or two independent channels per module allows for up to 20 channels per 19″ rack.
  • Upgraded resistance against Electromagnetic Interference (EMI/ EMC).

Benefits

  • A new functional safety level enhances security for facilities and personnel.
  • Minimised risk of false programming.
  • Wide range of MSA gas detectors applicable.
  • The controller can be configured without the use of tools (operation by access codes).
  • Error and failure messages on the display warn of any operating anomalies.
  • Display of extended and improved diagnostic data.
  • Quick configuration check is possible.
  • If a detector needs to be changed, no new controller card is required (reconfigure the existing controller).
  • Satisfies a variety of gas monitoring applications.

Order Information

Controllers (Input cards for 19″ rack)

10162570 Control unit 9010 SIL, GENERAL PURPOSE
10162570-DE Control unit 9010 SIL, GP-VERS., CUSTOM
10162591 Control unit 9020 SIL, GENERAL PURPOSE
10162591-DE Control unit 9020 SIL, GP-VERS., CUSTOM

Controllers (Wall mount Box)

10162592 Control unit 9010 SIL, IN WALL MOUNT
10162592-DE Control unit 9010 SIL, WALL MOUNT, GP, CUSTOM.
10162593 Control unit 9020 SIL, WALL MOUNT
10162593-DE Control unit 9020 SIL, WALL MOUNT, GP, CUSTOM.

Notes: All DE controller cards or wall-mount units, MSA configures a customised setting.

Pre-treminated Racks (Rack for max. 2 slots:)

10168374 RACK 19″/2, 9010/20 SIL, for 1 Slots
10168375 RACK 19″/2, 9010/20 SIL, for 2 Slots

Pre-treminated Racks (Rack for max. 5 slots:)

10168376 RACK 19″/5, 9010/20 SIL, for 1 Slots
10168377 RACK 19″/5, 9010/20 SIL, for 2 Slots
10168378 RACK 19″/5, 9010/20 SIL, for 3 Slots
10168379 RACK 19″/5, 9010/20 SIL, for 4 Slots
10168380 RACK 19″/5, 9010/20 SIL, for 5 Slots

Pre-treminated Racks (Rack for max. 10 slots:)

10168381 RACK 19″/10, 9010/20 SIL, for 1 Slot
10168382 RACK 19″/10, 9010/20 SIL, for 2 Slots
10168383 RACK 19″/10, 9010/20 SIL, for 3 Slots
10168384 RACK 19″/10, 9010/20 SIL, for 4 Slots
10168385 RACK 19″/10, 9010/20 SIL, for 5 Slots
10168386 RACK 19″/10, 9010/20 SIL, for 6 Slots
10168387 RACK 19″/10, 9010/20 SIL, for 7 Slots
10168388 RACK 19″/10, 9010/20 SIL, for 8 Slots
10168389 RACK 19″/10, 9010/20 SIL, for 9 Slots
10168390 RACK 19″/10, 9010/20 SIL, for 10 Slots

Notes: All pre-terminated racks are equipped with one half-blind plate and full blind plates (related to the number of slots) and wire termination connectors at the rear.

Spare Parts and Accessories

10166724 Backplane Terminal unit, 9010/9020 SIL
10175205 Blank plate, 40mm, 9010/20, w. screws
10175206 Blank plate, 20mm, 9010/20, w. screws
10164881 19″ Rack (2 modules), empty, no ATEX label
10164882 19″ Rack (5 modules), empty, no ATEX label
10164883 19″ Rack (10 modules), empty, no ATEX label
10162598 Set of Spare Relays (package of 4 relays)
10174743 Set of fuses (10 off )
10173033 Set of cable glands M20 (8 off )
10164884 Cable, f. wall mount display, 9010/9020SIL
10164870 Plastic rails, set of 10 pcs., 9010/9020 SIL
10164888 Lid f. wall mount, 9010SIL, w. LCD ass.+ packing
10164887 Lid f. wall mount, 9020SIL, w. LCD ass.+ packing
10164886 PCBA, f. 9010SIL wall mount
10164885 PCBA, f. 9020SIL wall mount
10061934 Rear terminal board assy; wall mount
10029840 9010/9020 Jumper pitch 5.08
10029845 Fuse F3 2A 24 VDC
10194086 Sensor simul. 9010/9020 SIL f. 4-20mA
10194087 Sensor simul. 9010/9020 SIL f. WT
10171754-SP Operating manual CD incl. all languages & DoC’s

Enquire About This Product

Title Size
9010/9020 Datasheet 712 KB

Additional information

Weight 0.190 kg

Specifications

Power Supply
AC supply 100 VAC–240 VAC 50/60 Hz
DC supply 24 VDC (19–32 VDC), ripple < 5 %
Digital outputs
Alarm relays 2x SPDT relay 8 A/250 VAC, resistive load, load current 10 mA–1.6 A, applies to WARNING and ALARM
Failure relays 1x SPDT relay 8 A/250 VAC, resistive load, load current 10 mA–1.6 A
Horn relay 1x SPDT relay 8 A/250 VAC, resistive load, load current 10 mA–1.6 A
Opto-isolated output 30 mA, 24 VDC max, resistive load, related to CAUTION
Alarm management
Reset mode Automatic or manual
Alarm delay 0–600 s (for non ATEX mode only)
Span and Zero drift < ± 0.5 % f.s. ± 1 digit/month
Accuracy (without sensor) ± 1% full scale ± 1 digit
Operating temperature –10° C to +55° C
Storage temperature –25° C to +60° C
Humidity Max. 90% R.H. non-condensing
Vibrations 10–30 Hz, amplitude 1 mm, 31–100 Hz, max. acceleration 19.6 m/s²
Display Back lit LCD, 4-digit, 7-segments
Optical alarms LEDs
Time-out setting Automatic return to measurement after max. 6 minutes
Configuration and log book data Stored in nonvolatile memory
Protections
AC/DC in case of power failure Redundant power inputs, automatic electronic switch over in case of main break down
Diagnosis Self-monitoring electronics
