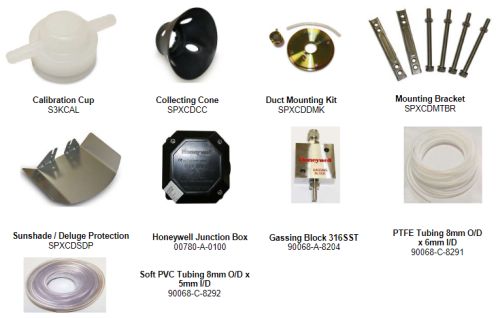

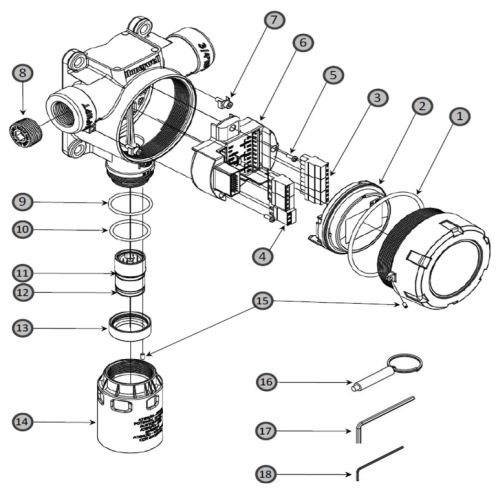

| Legend |
Part |
Order Number |
Description |
| 1 |
XCD Service Kit |
SPXCDSERVK |
O-ring front cover (2 pieces) |
| 5 |
Terminal module screw (3 pieces) |
| 7 |
Earth screw and bracket (2 pieces) |
| 9 |
O-ring weather housing |
| 10 |
O-ring cartridge retainer (2 pieces) |
| 11 |
O-ring on the cartridge (2 pieces) |
| 15 |
Locking screw for front cover and sensor retainer (2 pieces) |
| 16 |
XCD Service Tool Kit |
SPXCDTOOLK |
Magnet (1 piece) |
| 17 |
Hex wrench for earth screw (1 piece) |
| 18 |
Allen key for locking screws (1 piece) |
| 2 |
Display Module |
SPXCDDMF12 |
Replacement display module for FLAM and IR |
| SPXCDDMT12 |
Replacement display module for O2 & Toxic |
| SPXCDDMFM12 |
Replacement display module FLAM and IR with Modbus |
| SPXCDDMTM12 |
Replacement display module O2 & Toxic with Modbus |
| SPXCDDMR |
Replacement display module XCD RFD Flam & IR |
| SPXCDDMRM |
Replacement display module XCD RFD Flam & IR, Modbus |
| SPXCDDM4 |
Replacement display module XCD RTD Toxic & O2 |
| SPXCDDM4M |
Replacement display module XCD RTD Toxic & O2, Modbus |
| 3 |
XCD Terminals Kit |
SPXCDTMK |
Terminal block for relays (green) |
| 4 |
Terminal block power & signal (green) |
| 6 |
Terminal Module (Including the terminals: Legend – 3 and -4) |
SPXCDTMF12 |
Replacement terminal module for FLAM and IR, 12V version |
| SPXCDTMO12 |
Replacement terminal module for O2, 12V version |
| SPXCDTMT12 |
Replacement terminal module for Toxic, 12V version |
| SPXCDTMR |
Replacement terminal Module XCD RFD |
| SPXCDTM4 |
Replacement terminal module XCD RTD |
| 8 |
Blanking Plug |
SPXCDNPTP |
3/4″NPT plug (Certified as part of Ex d enclosure) |
| SPXCDM20P |
M20 plug (Certified as part of Ex d enclosure) |
| 12 |
Sensor Cartridge |
Please see Replacement Sensor Cartridges |
| 13 |
Cartridge Retainer |
SPXCDSRLS |
Cartridge retainer with locking screw |
| 14 |
Weatherproof Cap |
SPXCDWP |
Weatherproof cap |
