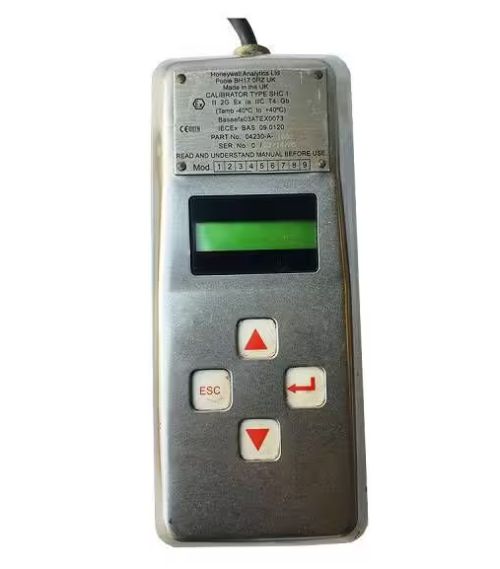

The Honeywell SHC-1 Handheld Interrogator is a portable, Intrinsically Safe (IS) device which can be used to calibrate, test, and commission the Searchpoint Optima Plus and Searchline Excel gas detectors.
The SHC-1 interrogator communicates with detectors via a digital RS-485 link. Electrically, this link can be made either by using the IS socket on the DVC100 X100 or by connecting the flying leads on the SHC Protection Device (04230-A-1025) to the corresponding junction box terminals.
Warning: The IS certification of the SHC-1 Handheld Interrogator only remains valid if it is used in conjunction with the DVC100 / DX100 or the SHC Protection Device. Do not attempt to connect the SHC-1 interrogator directly to units; always use either the DVC100 / DX100 or the SHC Protection Device.
Order Information
04230-A-1001 Hand Held Interrogator ATEX Certified (4V0 software) for Searchpoint Optima Plus and Searchline Excel.
2104B2351 Hand Held Interrogator UL Certified for Searchpoint Optima Plus and Searchline Excel.
2104B2354 Hand Held Interrogator CSA Certified for Searchpoint, Optima Plus and Searchline Excel.
2108B1455 Hand Held EEPROM upgrade (4V0).
04230-A-1025 SHC protection device module and lead.
2104B6250 SHC Calibrator Connector System 10m.
