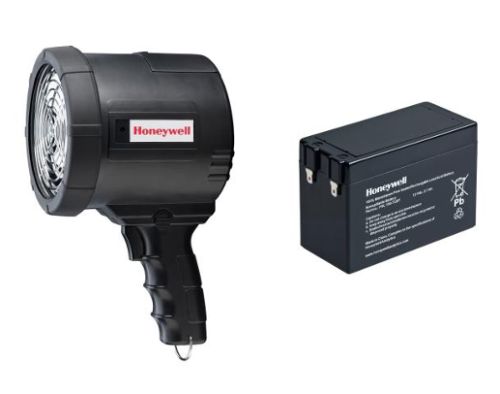

The FSL100-TL (test lamp) is a rechargeable, handheld IR and UV radiation source specifically designed to test Honeywell FSL100 series flame detectors used in safe areas only.
The detection range is approximately 4 meters (13 ft). It is supplied in a custom carry case with a dedicated charging unit suitable for mains connection.
Operation
This is typically a two-person operation, with one person at the detector and another at the controller. Additionally, you may need extra fire-watchers while the alarms are inhibited.
- Inhibit or isolate all affected relay outputs before beginning the test.
- Aim the test lamp at the flame detector from a distance of ≅4 m (13 ft).
- Operate the test lamp for ≅approximately 30 seconds and verify that the alarm operates correctly. Do not use the test lamp for longer than 1 minute continuously.
- Reset the alarm and test the next detector, waiting at least 30 seconds between tests to allow the lamp to cool down.
Order Information
FSL100-TL FSL100 test lamp, incl. universal charger and carrying case; non-EX
FSL100-TLBT 12 Vdc battery for FSL-TL test lamp
FSL100-TLBU H3 light bulb for FSL-TL test lamp
FSL100–TLCH Universal charger kit for FSL-TL test lamp
