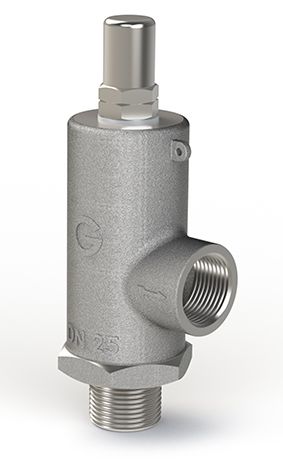

G36 Stainless Steel Safety Relief Valves – side outlet discharge with leak-proof dome top
These valves are commonly used to prevent safe pressure from being exceeded in pressurised systems. The lift is proportional to the system overpressure.
Particularly suitable for most liquid applications where a ‘small’ discharge often prevents the safe pressure in a system from being exceeded. Also suitable for steam, gases & vapour applications where a low discharge is suitable.
Size Range:
- DN15-DN50 (½” – 2”)
Pressure Range:
- 0.5 Bar.g (7 PSI) to 20.7 Bar.g (300 PSI)
Pipe Connections:
- Male Inlet x Female Outlet.
- Inlet: Threaded ‘G’ BSP Male to BS EN ISO 228/BS 2779.
- Outlet: Threaded ‘Rp’ Parallel Female to BS 21/BS EN 10226/ISO 7.
- Alternative thread standards, i.e. BSPT or NPT, are available upon request.
- Flanged connections are also available. Most flange standards can be accommodated.
Features and Benefits:
- Gresswell Valves are quality assurance approved to BS EN ISO 9001: 2015 and manufactured in accordance with BS EN ISO 4126-1 & BS6759.
- Screwed/Flanged, or a combination of both, is available as standard.
- See data sheets for Discharge Capacities.
