G150

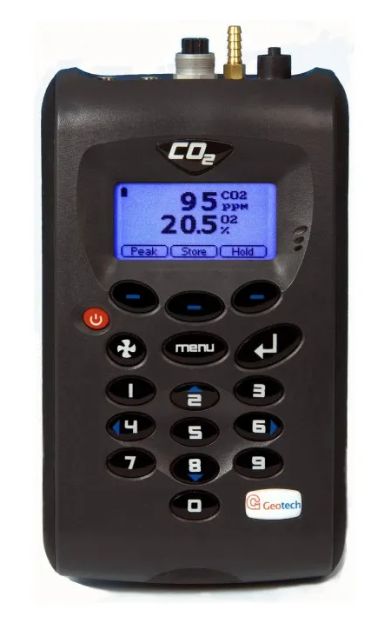

Geotech G150 CO2 Carbon Dioxide Analyser

Code: G150-00N
  • Accurate CO2 readings
  • Easy to read, large, well-lit display
  • Data logging for long-term application

In StockMake An Enquiry
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

The G150 CO2 analyser is designed to monitor CO2 for all indoor air quality applications.

This unit has been developed to incorporate the latest technology and specification requirements, providing the user with a fast, simple-to-use, and accurate piece of environmental field equipment.

Features

  • CO2 0-10,000 ppm.
  • Options for:
    • O2 0-100%.
    • Dual temperature probes 0 to 50°C.
    • Data storage and download.
    • Humidity sensor 0-100%.
    • Preset audible and visual alarms.
    • Optional 1m probe (Stowseek).

Benefits

  • Quick verification of CO2 levels for site audits.
  • Time saving with dual temperature probes.
  • Built-in gas moisture removal.

Applications

  • General IAQ.
  • Environmental site audits.
  • HVAC System approval.
  • Illegal immigrant control/detection.

Order Information

G150-00N G150 CO2 Monitor 0-10,000ppm.
G150-01N G150 CO2 Monitor 0-10,000ppm – With Relative Humidity fitted.
G150-10N G150 CO2 Monitor 0-10,000ppm – Oxygen cell fitted.
G150-11N G150 CO2 Monitor 0-10,000ppm – Oxygen cell and Relative Humidity fitted.
G150-STOW G150 Stowseek analyser with 1 metre sampling probe. IAQ analyser package 0-10,000ppm CO2 with internal pump.
Includes battery charger, sample tube, filters, operating manual, and 1-metre sampling probe.

    Enquire About This Product


    Title Size
    G150 Datasheet 1 MB

    Additional information

    Weight 0.09 kg

    Specifications

    POWER SUPPLY
    Battery type Li Ion
    Battery life 12 hours (10 hours with pump)
    Battery lifetime 600 cycles
    Battery charger 5Vdc external power supply and internal charging circuit
    Charge time 4 hours
    Alternative power 5Vdc power supply
    GAS RANGES
    Gases measured CO2 By custom dual wavelength infra-red cell with reference channel
    O2 (optional) By internal electrochemical cell
    Oxygen cell lifetime Approximately 3 years in air
    Range CO2 0-10,000 ppm
    O2 0-100%
    Typical accuracy* CO2 0-10,000 ppm
    ± 1.5% of range after calibration
    (typically ± 10 ppm at 500 ppm CO2 after user calibration)
    O2 ± 1.0% of range after calibration
    Response time T90 CO2 ≤ 20 seconds
    O2 ≤ 60 seconds
    *Typical accuracies All typical accuracies quoted are after calibration plus accuracy of calibration gas used.
    FACILITIES
    Temperature (optional) x 2 using optional probes 0°C to +50°C (not available if humidity is selected)
    Temperature accuracy ± 0.2°C
    Barometric pressure 800 – 1200 mbar
    RH measurement (optional) RH probe 0 – 100% RH non condensing
    RH accuracy ± 1.5% RH across the range
    Visual and audible alarms User selectable CO2 and O2 alarm levels
    Communications USB type B mini-connector, HID device class
    Data storage 1000 reading sets plus 270 events
    PUMP
    Flow 100cc / min typically
    ENVIRONMENTAL CONDITIONS
    Operating temperature 0°C to 50°C
    Relative humidity 0 – 95% non condensing (RH probe 0 – 100% non condensing)
    Barometric pressure ± 500mbar from calibration pressure
    IP rating IP40
    PHYSICAL
    Weight 495 grams
    Size L 165mm, W 100mm, D 55mm
    Case material ABS / polypropylene with silicone rubber inserts
    Keys 17 resin capped silicone rubber keys
    Display Liquid crystal display, 128 x 64 pixel
    With RGB LED back-light
    Gas sample filters Built-in gas dryer tube to remove moisture
    User replaceable PTFE water trap filter
    CERTIFICATION
    EN 50270 :2006 Electromagnetic compatibility – electrical apparatus for the detection and measurement of combustible gases, toxic gases or oxygen
    EN61010 -1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use.
