Biogas 300

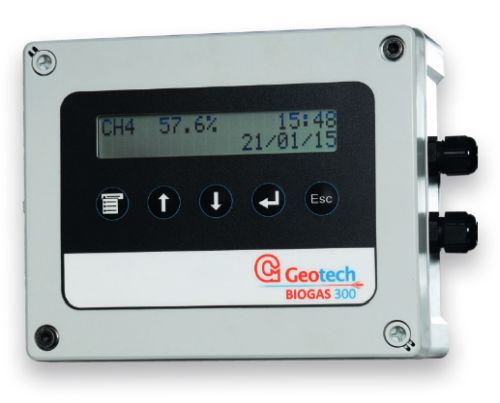

Geotech Biogas 300 Fixed Gas Analyser

  • Simple to operate – push button operation
  • 0-100% CH4 measurement
  • Single sample point monitoring

In StockMake An Enquiry
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Easy to self-install, operate, and maintain, the Biogas 300 is a cost-effective, fixed-system biogas analyser for CH4 monitoring. Ideal for 500kW or smaller-scale anaerobic digestion plants, from agricultural to food waste, with typical applications.

Features

  • Easy-to-read backlit display through a transparent enclosure door.
  • Last reading stored for on-screen viewing.
  • IP65-rated ABS enclosure.
  • Modbus data output.

Benefits

  • No training required.
  • Zero service downtime, optional hot-swap.
  • Simple user calibration.
  • Field-proven technology.
  • Quick and easy self-installation.
  • Low cost of ownership.
  • Compact self-contained system.

    Enquire About This Product


    Title Size
    Biogas 300 Datasheet 972 KB

    Additional information

    Weight 0.09 kg

    Specifications

    GENERAL SPECIFICATION
    Number of sampling points 1
    Gases monitored CH4
    Sample pressure Non-pump version suitable for +10 to +50 mb sample points
    Pumped version suitable for -100 to +350 mb sample points
    Operating temperature range 0°C to +50°C
    Detects low flow and blockages Reading obtained by user pressing sample button
    POWER
    Mains 110-240 Vac 50/60 Hz
    Power 12W
    Real time clock back up Lithium manganese dioxide coin cell
    GAS RANGES
    Gases measured CH4 – By dual wavelength infrared cell with reference channel
    Range CH4 – 0-100%
    Typical accuracy – after calibration* CH4 – ±2.0% vol
    Response time, T90 CH4 – 120 seconds**
    PUMP (OPTIONAL)
    Flow 100ml/min typically
    Maximum vacuum restart -100mb
    Maximum sample pipe length 50 meters***
    COMMUNICATION OPTIONS
    Output channels Modbus (as standard)
    4-20mA current sink (optional)
    4-20mA current source via a loop powered isolator (optional)
    PHYSICAL
    Weight Max 10 kg
    Size 500 x 400 x 200mm
    Enclosure ABS, IP65 rated (with supplied wall mounting brackets)
    Operation keys Tactile five button membrane keypad and sample button
    Display Liquid crystal display with 20 x 2 characters and white LED backlight
    Moisture removal filters User replaceable inline PTFE filter and coalescing filters
    COMPLIANCE
    BS EN 61010-1: 2010 Safety requirements for electrical equipment for measurement, control, and laboratory use. Part 1: General requirements
    BS EN 50270: 2006 Electromagnetic compatibility – electrical apparatus for the detection and measurement of combustible gases, toxic gases or oxygen
    * Plus accuracy of calibration gas used.
    ** T90 taken from point gas enters the system at ambient pressure and 100ml/min flow rate.
    Different applications will increase or decrease time accordingly.
    *** Note: sample pipe length will affect response times.
