Now obsolete, replaced by the S5000 Gas Monitor.

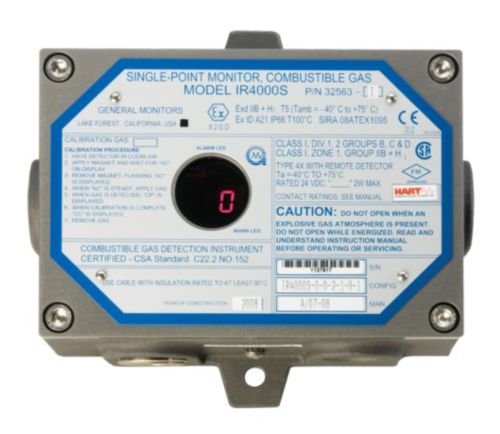

The IR4000 Monitor is available in two options: the Model IR4000S Single-Point Monitor and the Model IR4000M Multi-Point Monitor. Both feature a three-digit LED display and a user interface for the Model IR400 point IR gas detector. The monitor allows local calibration and displays gas concentration. Both are housed in an explosion-proof junction box enclosure that can be installed in hazardous locations adjacent to the detectors.
Optional relays for both monitors provide output for Alarm, Warn, and Fault conditions occurring at each detector. Users can select operating mode, warn, and alarm setpoints via a magnetically activated switch. The relays are user-programmable as either latching or non-latching, and can be normally de-energised or normally energised. Latching relays can be reset via a remote reset input or the magnetic switch.
Model IR4000M Multi-Point Monitor is a display, relay module, and data concentrator. It provides monitoring and control functions for up to eight connected IR400 or IR5500 gas detectors. The highest current % LEL among all connected detectors is displayed continuously during normal operation. In addition, IR4000M reads seven data items from each of the detectors connected to it, at least once per second.
An extensive set of menus is navigated using a magnetic switch to request the status and configuration data stored by the IR4000M. Additionally, more than 200 IR5500 and IR400 Monitor Modbus registers offer the greatest possible flexibility in reviewing current status data and settings, as well as configuring operating parameters. For example, the IR4000M can report % LEL data for all eight detectors with a single command, which is particularly useful in large, multi-point systems.
Features & Benefits
- IR4000M can connect to as many as eight remote IR400 or IR5500 Detectors, operating as an integrated gas detection system with voting.
- IR4000M onboard data concentrator reads status for up to eight devices at once with one command, useful in large, multi-point systems.
- IR4000M can calibrate, gas-check, and zero multiple IR400 detectors with a single command, providing ease of maintenance and accessibility.
- An explosion-proof enclosure and magnetic interface enable installation and calibration in hazardous locations.
- Optional eight-amp relays expand system functions, potentially eliminating the need for additional equipment, such as a programmable logic controller (PLC).
Applications
- Chemical plants
- Compressor stations
- Drilling and production platforms
- Fuel loading facilities
- Oil well logging
- LNG/LPG processing and storage facilities
- Refineries
- Wastewater treatment facilities
Spare Parts
32491-3A = CONTROL BOARD, MODBUS, PUSH TERMINAL, IR4000S
32491-5A = CONTROL BOARD, MODBUS, SCREW TERMINAL, IR4000S
32491-6A = CONTROL BOARD, CO2, PUSH TERMINAL, IR4000S
32951-1A = CONTROL BOARD, HART, PUSH TERMINAL, IR4000M
30060-1 = CALIBRATION MAGNET
