This product is obsolete and has been replaced by the Observer-I.

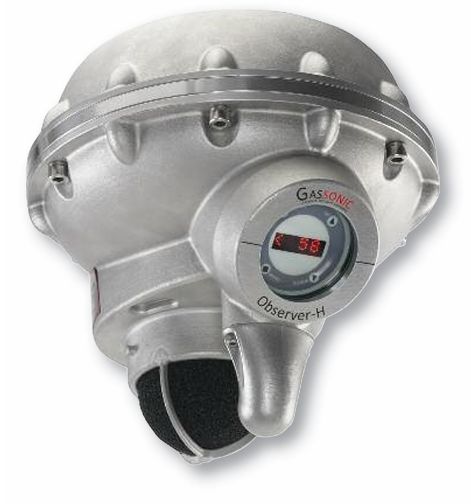

The Gassonic Observer-H Ultrasonic Gas Leak Detector detects leaks instantaneously from high-pressure systems.
- Senssonic integrated acoustic self-test.
- Stainless steel AISI 316L explosion-proof housing.
- One-person sound check and calibration with a traceable portable test unit.
- Three-digit LED display.
- Instant detection of pressurised gas leaks; immune to gas dilution, windy conditions, or leak direction.
- Provides complete status and control capability in the control room.
- Stores fault, sound check, calibration and alarm event history.
- Provides full failsafe operation.
- Corrosion resistance in harsh environments.
- High reliability and trouble-free maintenance.
- Displays actual sound pressure level and alarm indication.
It responds to the airborne ultrasound generated from gas releases in open, well-ventilated areas, where traditional methods of detection may be unsuitable or dependent on ventilation. Since the Gassonic Observer-H responds to the source of a gas release rather than the dispersed gas, it remains unaffected by changes in wind direction, gas dilution, and the direction of the gas leak. Further, with its wide coverage radius, it can supervise a relatively large area with a single device.
The Gassonic Observer-H is immune to many false signals and can be configured to filter short-timescale ultrasonic noise that can produce nuisance alarms. Frequencies below 25 kHz are removed by a high-pass filter, effectively eliminating interference from audible and low-frequency ultrasonic noise. At the same time, setting the alarm trigger level above the ultrasonic background noise ensures immunity to other noise sources. The result is a reliable method of detection, capable of monitoring environments with high levels of ultrasound, such as turbine rooms and compressor stations.
The Gassonic Observer-H also features the Senssonic patented self-test for full failsafe operation. This self-test checks the electrical integrity of the device and microphone every 15 minutes, ensuring the Observer-H remains operational at all times. Additionally, the ultrasonic gas leak detector is available with Modbus or HART protocols to facilitate asset management and process improvement.
Applications
- Floating Production Storage and Offloading Vessels (FPSOs)
- Gas Compressor and Metering Stations
- Gas Storage Facilities
- Gas Turbine Power Plants
- Hydrogen Storage Facilities
- LNG / GTL Trains
- LNG Re-gasification Plants
- Offshore and Onshore Oil and Gas Installations
- Petrochemical Processing Plants
- Refineries
- Underground Gas Storage Facilities
Order Information
80332-1 MICROPHONE 40AB
956-023 TORQUE WRENCH FOR OBSERVER
