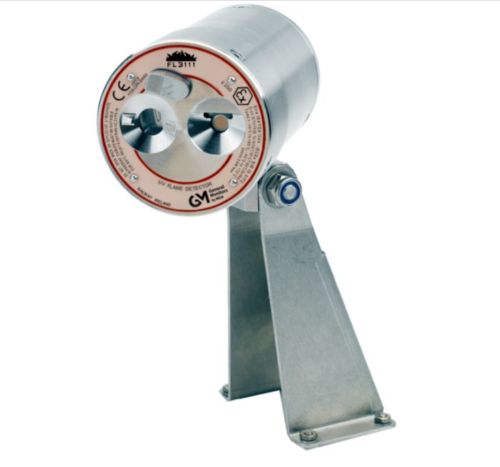

General Monitors’ Model FL3111HT is a high-temperature-rated UV-only flame detector designed to detect unwanted fires while maintaining false alarm immunity. The FL3111HT detects only in the ultraviolet (UV) spectral range for optimised speed of response.
The detector can withstand ambient temperatures of up to 125 °C. This is achieved by using a specially selected detector and electronic components, along with very low power consumption, to minimise self-heating.
The detector’s electronics are integral within an explosion-proof housing, allowing detector information to be processed at the point of detection. The electronics are fully separated from the Exe wire compartment, offering protection during installation and service. The FL3111HT is available with a 4-20 mA stepped output.
The COPM (Continuous Optical Path Monitoring) self-test feature checks the optical path integrity (window cleanliness) and the detector’s electronic circuitry once every minute.
Features
- Stainless steel construction
- Exe wiring compartment
- Fast response
Benefits
- Suitable for gas turbine applications
- Greater coverage for detecting fires utilising fewer detectors
- Checks optical path integrity and the detector’s electronic circuitry once every minute
- High level of corrosion resistance for marine environments
- Ease of field wiring connection
- 100 milliseconds for critical applications
Applications
- Gas Turbines
- Compressor Stations
- Power Generation
- Generator Sets
- Solvent Extraction
- Drying Processes
- Paint Booths
Order Information
| Part Number | Description |
| ATEX: | |
| FL3111HT-1-1-1 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 2 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-1-2-1 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 4 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-1-3-1 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 8 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-1-4-1 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 10 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-2-1-1 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 2 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-2-2-1 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 4 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-2-3-1 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 8 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-2-4-1 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 10 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-3-1-1 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 2 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-3-2-1 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 4 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-3-3-1 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 8 SECOND DELAY, ATEX/ENGLISH |
| FL3111HT-3-4-1 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 10 SECOND DELAY, ATEX/ENGLISH |
| RUSSIAN: | |
| FL3111HT-1-1-2 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 2 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-1-2-2 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 4 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-1-3-2 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 8 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-1-4-2 | HI TEMP UV FLAME DETECTOR, 100% SENSITIVITY, 10 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-2-1-2 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 2 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-2-2-2 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 4 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-2-3-2 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 8 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-2-4-2 | HI TEMP UV FLAME DETECTOR, 75% SENSITIVITY, 10 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-3-1-2 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 2 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-3-2-2 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 4 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-3-3-2 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 8 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
| FL3111HT-3-4-2 | HI TEMP UV FLAME DETECTOR, 50% SENSITIVITY, 10 SECOND DELAY, RUSSIAN W/RUSSIAN NAMEPLATE |
