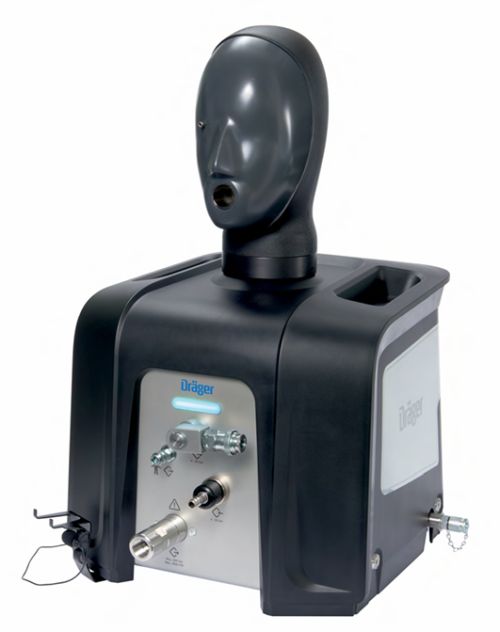

Drager Quaestor 8000 Test Equipment

All static and dynamic tests of the Drager Quaestor 8000 are carried out fully automatically. Controlled by the proven Protector software, each test is carried out intuitively. For you, this guarantees high efficiency through comfort and speed.

Fully-automatic static and dynamic tests

The test process is fully automated. Automatically opening and closing valves accelerates the process, and manual intervention is no longer required. An external microphone also automatically captures the switch-on point of the low-pressure warning. The Quaestor 8000 can read the Drager Bodyguard when equipped with an optional cradle, allowing the gauge levelling to be done fully automatically.

Comprehensive test options

The Drager Quaestor 8000 is available in five different versions. In each version, it can test full-face masks, chemical protection suits and compressed air breathing apparatus for functionality and leak tightness. Tests of diving apparatus (SCUBA), closed-circuit breathing apparatus (CCBA) and safety valves (SV) are also possible, if required. The high-precision and manufacturer-independent measurements are carried out according to EN 137.

Ergonomic and flexible pressure connections

Drager’s Quaestor 8000 pressure connections are ergonomically and flexibly designed. The medium-pressure inlet comes with an extendable hose to eliminate the risk of leaks and resistance due to additional extension hoses. In addition, the rotatable medium pressure outlet reduces the distance between the breathing connection of the lung demand valve and the mask opening or breathing adapter, e.g. if the test head has been rotated by 90 degrees.

Optimum tight fit for all mask sizes

You can turn and remove the test head without restrictions as needed. This flexibility allows you to tailor the test design even more individually and comfortably to your requirements. In addition, the gel face of the test head, which emulates the elasticity of the human facial skin, optimises a tight fit for all common mask sizes.

Intuitive software

The included software contains a comprehensive database of pre-installed amendable device data. With user notices and graphic elements, the manual test steps are presented comprehensibly even for inexperienced users. After every completed test, a test result report is created for documentation purposes. An optionally applied test-due list provides you with timely information about tests that are due. The software also permits a customer-specific design of the test sequences, events and intervals.

New LED status bar

The new LED status bar informs you with different colours when a test is still running and indicates the result when a test has been completed.

More space due to lower housing dimensions

Due to the complete redesign of the electronic and pneumatic components, the new housing is about 4 cm narrower and thus creates additional workplace. The device will remain compatible with the previous workbench setup.

Smart accessories

Included in the delivery are an external microphone for detecting the acoustic signal of the low-pressure warning and a specially designed bracket to ensure a comfortable rest position for the manometer or Drager Bodyguard. An optional accessory, the QSI Box guarantees sound insulation for the low-pressure warning. In addition, a holder for all mask-helmet combinations can be upgraded to the test head. Furthermore, a holder for a compressed air breathing apparatus allows you to position the device at eye level comfortably.
