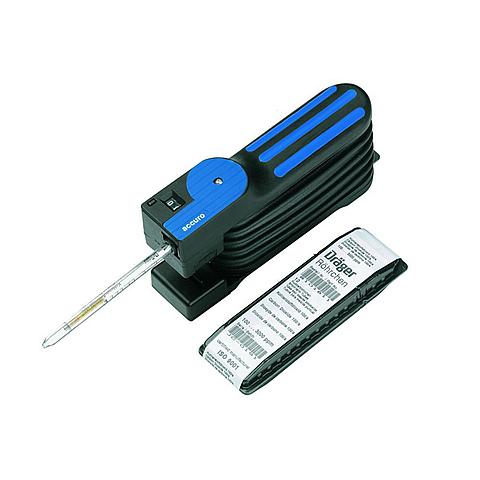

Fast measurement with one hand: The Drager Accuro Pump enables you to use the established Drager Tubes to take measurements under extreme conditions. The easy-to-use Drager Tubes have already been calibrated and form a perfect unit with the Accuro Pump.
Features
- Integrated end of stroke indicator – Clear indication when a stroke is ended.
- Integrated stroke counter – For easy monitoring of the number of strokes made.
- Integrated tube opener – Simple scoring of the tubes using a ceramic blade for clean opening.
- Hard-wearing EPDM rubber housing – Robust rubber mixture for reliable operation.
- Pump bellows – Precise volumes for an extended period of time.
- Scissor-spring mechanism – For a uniform compression of the pump bellows with one hand.
Mobile spot measurement
This manual pump is used for spot measurements, such as detecting concentration peaks, confined space entry, and worst-case scenarios.
Functional bellows pump
The Drager Accuro Pump draws in 100 ml per stroke. When measuring, the pump body (bellows) is pressed together thoroughly. The exhaust valve is closed during the opening phase of the bellows, allowing the gas sample to flow through the connected Drager tube into the pump.
After the pump body is completely opened to its original position, the suction process is finished. The end of stroke is visible by a pressure-controlled end of stroke indication, located in the pump head.
Sampling
During the sampling process, the substances to be evaluated are first accumulated on a suitable carrier material, such as activated charcoal or silica gel. The air to be evaluated is drawn over the respective material at a predefined flow rate and duration.
Afterwards, the substances that have accumulated on the carrier material through adsorption or chemisorption are examined qualitatively and quantitatively in the laboratory using instrumental analysis such as gas chromatography.
One-handed operation
Frequently, measurements need to be taken under extreme conditions, such as when working on ladders, in shafts, or while wearing heavy breathing protection. The Drager Accuro Pump can be easily operated with one hand and enables reliable measurement even in difficult-to-access places.
Order Information
6400000 Accuro gas detector pump, and tube opener TO 7000.
6400260 Gas detector set (includes Accuro pump, carrying case, tube opener TO 7000, and spare parts kit for Accuro).
6400220 Spare parts kit for Drager Accuro (contains 6 x valve disc, 1 x window, 3 x membrane, 1 x insert and 1 x grommet).
6400561 Extension hose 1 m Incl. adapter for simultaneous test set.
6400077 Extension hose 3 m Incl. adapter for tubes and adapter for hose in a carrying box.
6400078 Extension hose 10 m Incl. adapter for tubes and adapter for hose.
6400079 Extension hose 15 m Incl. adapter for tubes and adapter for hose.
6401200 Tube opener Drager TO 7000.
6400090 Adapter for Drager simultaneous test set, including cutting holder and adapter.
8318392 Multi gas detector kit, with Accuro hand bellows pump and spares kit in standard leather carrying case.
4056443 Hard side set with Accuro, a black transport case, a pack of rubber cups (10 pieces), and a spare parts set.
8317186 Soft gas detector set with an Accuro, nylon carrying case, and spare parts set.
8317147 Fumigation case orange, without contents.
3310150 Shoulder carrying case.
8100228 Carrying case for Accuro with shoulder strap.
8100229 Snap-on bag for carrying case.
4594631 Nylon Carrying Case, blue.
8316130 Hot pack holder. For use until minus 20°C, includes an adapter and two hot packs.
8316139 Hot packs (2 pieces).
CH00213 Hot air probe for the examination of exhaust fumes of combustion plants.
8317188 Bar Probe 400 for examination of fumigants in a container.
