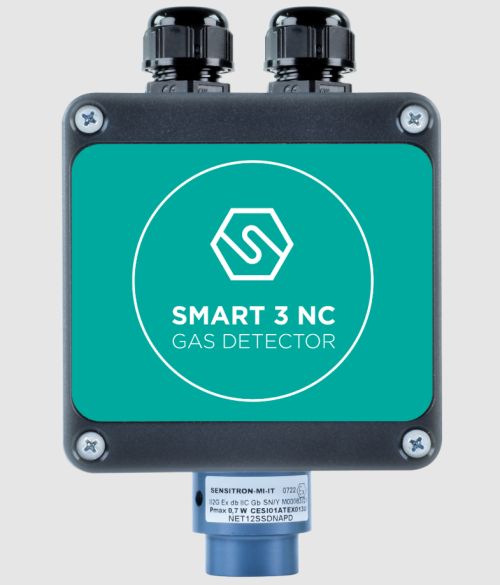

The SMART 3NC from Sensitron is a point gas detector for safe areas, featuring several user-friendly features for easy operation and maintenance, including ongoing system self-diagnosis, seamless installation and maintenance via a handheld keypad, and options for relay output and Modbus communication.
Designed for installation in non-classified areas and car parks, the Sensitron SMART 3NC is an IP55-rated point gas detector for safe areas. Developed to provide an affordable solution for underground garages and non-hazardous locations, without compromising on sophisticated detection.
Available for Methane, LPG, petrol vapours, CO, NO2, and CO2, these detectors utilise an industrial catalytic sensor for flammable gases, a three-electrode electrochemical cell for CO and NO2, and an infrared sensor for CO2.
Offering seamless installation, the SMART 3NC’s maintenance and calibration can be performed via the handheld keypad STS/CKD. Its ongoing system self-diagnosis ensures correct detector operation and performance at all times.
The SMART 3NC also has Relay and Modbus communication options.
Order Information
Detectors:
CR1450CO Smart 3-NC, Carbon Monoxide CO EC 0-300 ppm, 4-20 mA
CR1455VB Smart 3-NC, Petrol Vapour Cat. 0-100% LEL, 4-20 mA
CR1451ND Smart 3-NC, Nitrogen Dioxide NO2 EC 0-300 ppm, 4-20 mA
CR1455ME Smart 3-NC, Methane CH4 Cat. 0-100% LEL, 4-20 mA
CR1455GP Smart 3-NC, LPG Cat. 0-100% LEL, 4-20 mA
CR1455PR Smart 3-NC, Propane Cat. 0-100% LEL, 4-20 mA
CR2401CO2 Smart 3-NC, Carbon Dioxide CO2 IR 0-5000 ppm, 4-20 mA
Accessories:
STS/CSW+ Calibration software for SMART3G, SMART3NC & SMART3R detectors consisting of a USB key, a USB/RS485 converter and the STS/IDI card.
STS/IDI Plug-in RS-485 interface
STS/CKD+ Enhanced calibration keypad with 7-digit display and SD card slot.
STS/CKD-OLED Enhanced calibration keypad with OLED display and SD-CARD slot.
STS3REL 3-Relay card for SMART3 NC gas detectors.
Spares:
K1450CO CARBON MONOXIDE (CO) detector, 0-300 ppm, 4-20 mA, EC Sensor
K1455VB PETROL VAPOURS detector, 0-100% LFL, 4-20 mA, Catalytic Sensor
K1451ND NO2 detector, 0-20 ppm, 4-20 mA, EC Sensor
K1455ME METHANE detector 4-20 mA, 0-100% LFL Catalytic Sensor
K1455GP LPG detector 4-20 mA 0-100% LFL Catalytic Sensor
K1455PR PROPANE 4-20 mA 0-100% LFL Catalytic Sensor
K2401CO2 CARBON DIOXIDE (CO2) detector, 0-5000 ppm, 4-20 mA, IR Sensor
