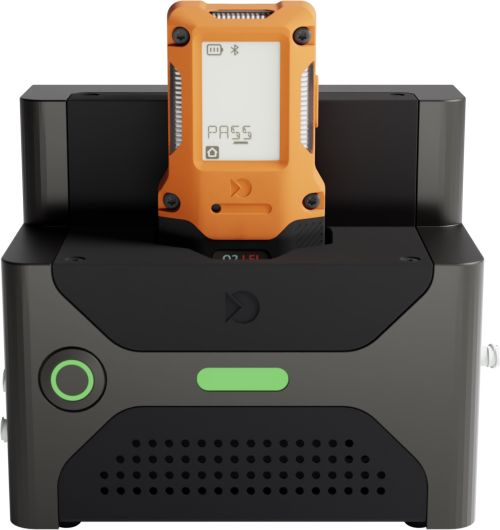

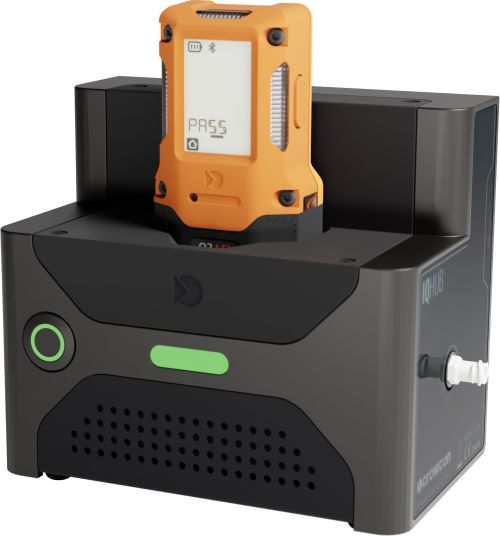

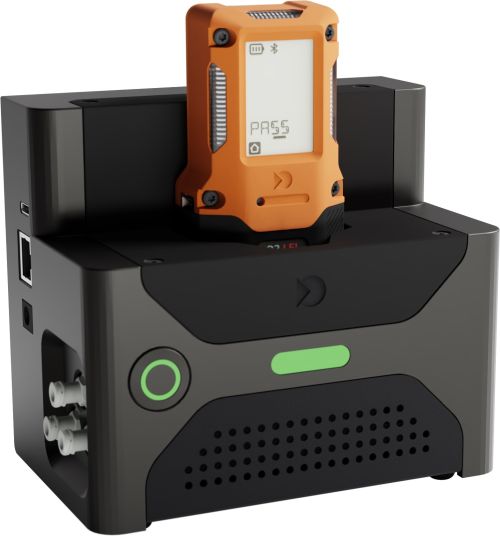

Crowcon IQHub Tubeless Single Bay Gassing Station

  • Automatic test & calibration station
  • Easy to use
  • Fast testing

In StockMake An Enquiry

IQhub is the all-in-one solution for seamlessly managing your portable gas detectors. Easily calibrate, bump test, and charge your devices in one place – ensuring compliance and peak performance.

With its industry-first tubeless design, IQhub simplifies servicing and enhances testing accuracy across all gases, including notoriously “sticky” ones like Cl2, NH3, and H2S. Just plug it in, and it’s ready to go, with automatic compliance tracking via Crowcon Connect.

Bump and go in less than 10 seconds

Bump and go in less than 10 seconds, with instant visual indicators and compliance tracking via Crowcon Connect.

Industry-leading calibration speed

Achieve industry-leading calibration in just 30 seconds – twice as fast as competitors. Effortlessly manage your fleet with certificates automatically stored and assigned to the right device in Crowcon Connect.

No manufacturer lock-in

Unlike other gassing stations, IQhub is designed for user servicing, eliminating downtime and costly manufacturer-only repairs.

Visibility anytime, anywhere

Effortlessly manage your fleet, data, and software updates from any web-enabled device.

Works straight out of the box

Unlike complex calibration stations, IQhub is simple to use and ready right out of the box – plug it in and go.

Economical & environmental

IQhub optimises calibration gas usage with a low flow rate, ensuring cost efficiency, environmental responsibility, and effortless reliability.

Future ready

Use interchangeable inserts to fit any device and future-proof your operations across the expanding wearables range.

Enquire About This Product

Title Size
IQHub Datasheet 498 KB

Additional information

Weight 0.190 kg

Specifications

SIZE W153 x D94 x H127mm
WEIGHT 775g
OPERATING TEMPERATURE +5 to +45°C / 41 to +113°F
STORAGE TEMPERATURE -20 to +60°C / -4 to +140°F
BUMP TEST (TIME) <10 seconds
CALIBRATION (TIME) <30 seconds
GAS USAGE (L/M) 0.5 litres per minute
POWER SUPPLY 100-240 V AC, 50/60 Hz 20W input
COMPATIBLE GASES Oxygen
  Hydrogen Sulphide
  Carbon Monoxide
  Methane
  Carbon Dioxide
  Ammonia
  Butane
  Hydrogen
  Nitrogen Dioxide
  Sulphur Dioxide
GAS INLETS 3 Configurable Inlets: Fresh Air, Target Gas, Target Gas
APPROVALS* CE / RED / ANATEL / FCC
ACCESSORIES Gas Cylinder, Demand Flow Regulator, Tubing
REAL TIME CLOCK Provides time and date
CONNECTIVITY USB-C, Bluetooth®, 10/100 Mbps Ethernet (RJ45)
DEVICE COMMUNICATION Two-way continuous data transfer via NFC
DATA STORAGE 1 Year + External USB Memory (Optional)
MANAGEMENT SOFTWARE Crowcon Connect Companion
  Cloud-hosted web application for safety monitoring and asset management, offering real-time alarms, compliance dashboards, location tracking, device configurations, and essential reporting
WARRANTY 2 years
*Pending approvals.
